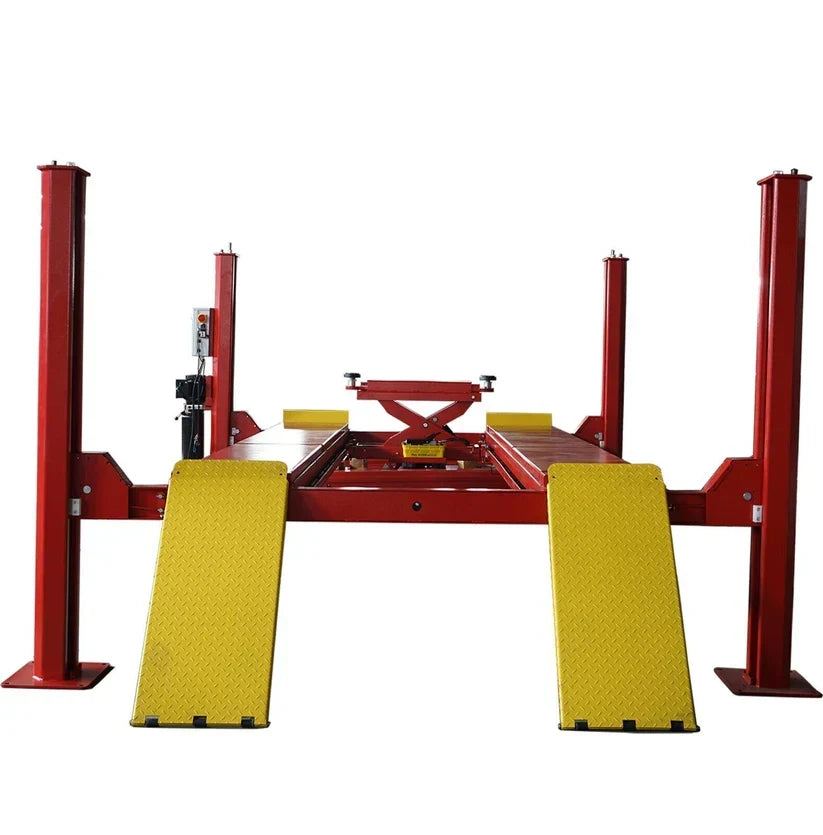

KATOOL KT-4H150 Heavy Duty 4-Post Alignment Lift 15,000lbs. Rolling Jack Included

KATOOL Equipment

KATOOL KT-4H150 Heavy Duty 4-Post Alignment Lift 15,000lbs. Rolling Jack Included

Brand: Katool

SKU: KT-4H150

$2,749.50 $5,499.00 Save $2,749.50

Available

Delivery Method

Quantity

Free Shipping Available this week

Secure Checkout Protected payment

Product Support Help before & after purchase

Secure ordering through Shopify checkout

Order Information

Before and after your purchase

Shipping, warranty and support details can vary by product. Review the information relevant to this model before ordering.

Shipping & Delivery

Larger automotive equipment may ship by freight. Delivery method and timing depend on the product and destination.

Shipping Information →

Warranty

Warranty coverage can vary by model. Review the applicable product warranty and coverage terms before purchase.

Warranty Information →

Product Support

Need help with specifications, compatibility or product information? Contact us with the model you're considering.

Contact Support →

Have a question about this product? Send us the product name or model together with your question.

Contact Us →

*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

15000lbs lifting capacity.

CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

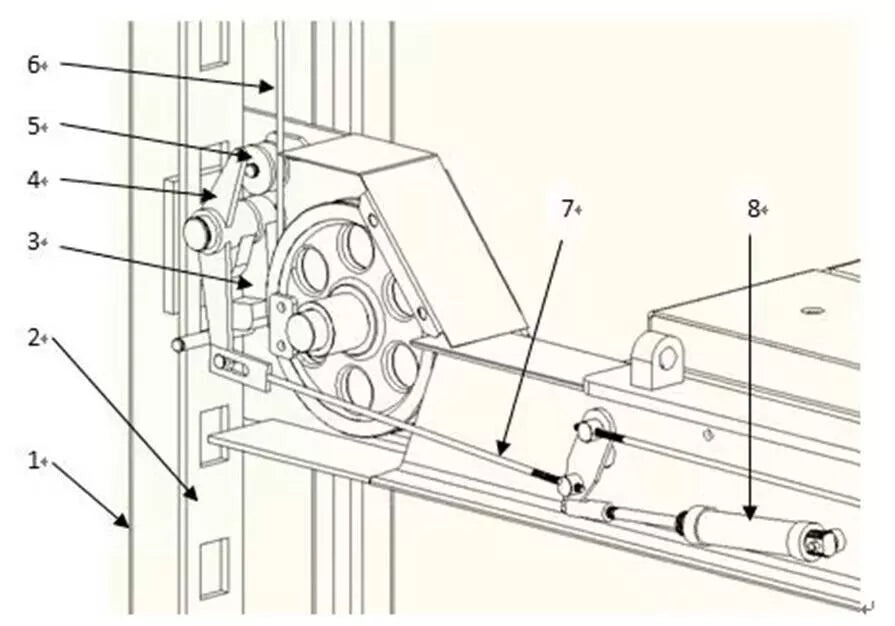

Spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.

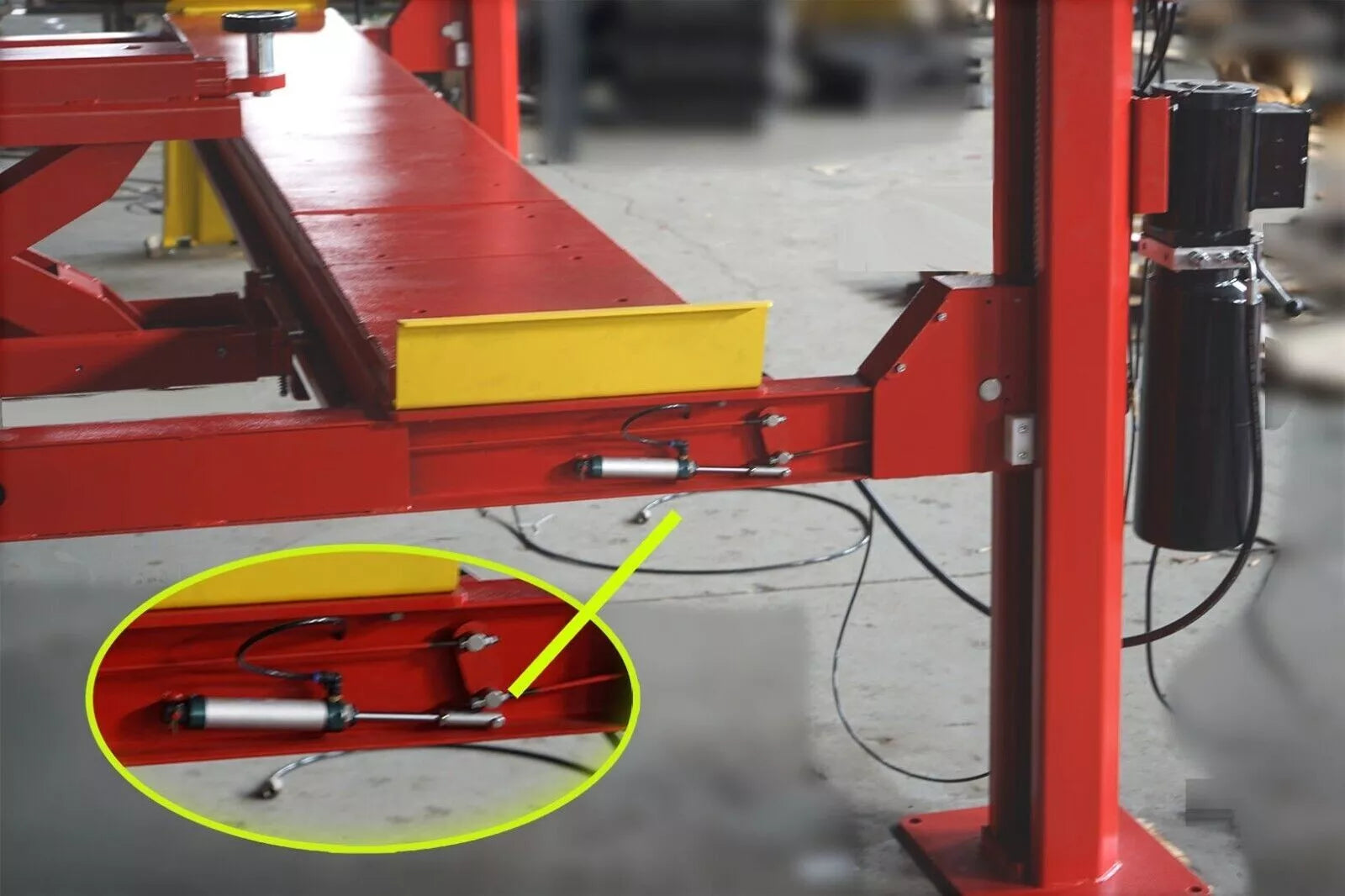

Equipped with multiple adjustable height locking positions for variable-height positioning. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.

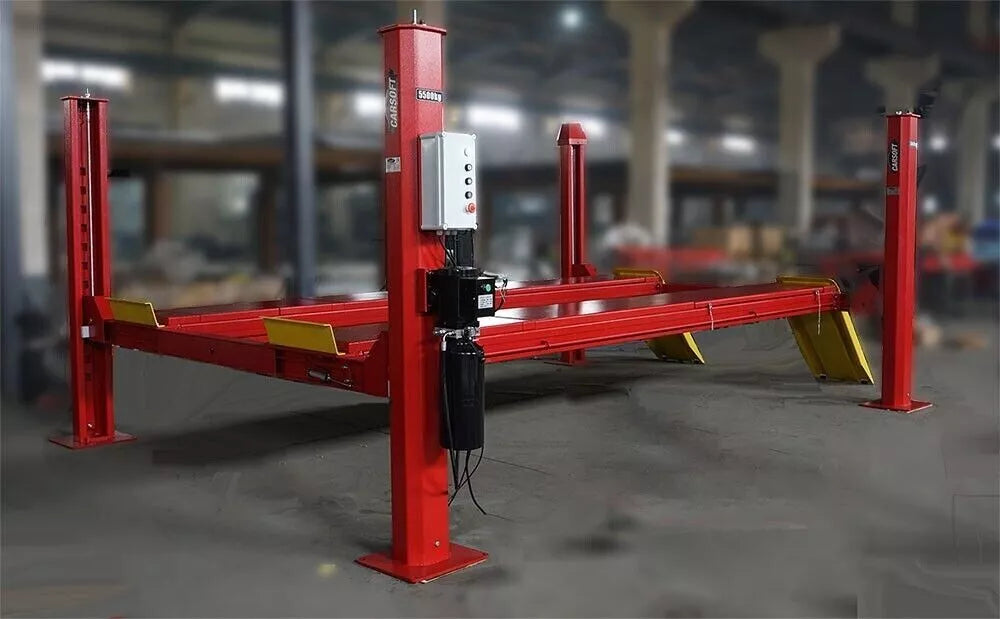

Power side column can be installed at both sides, front or rear.

Non-skid diamond texture ramps and non-slip coated runways.

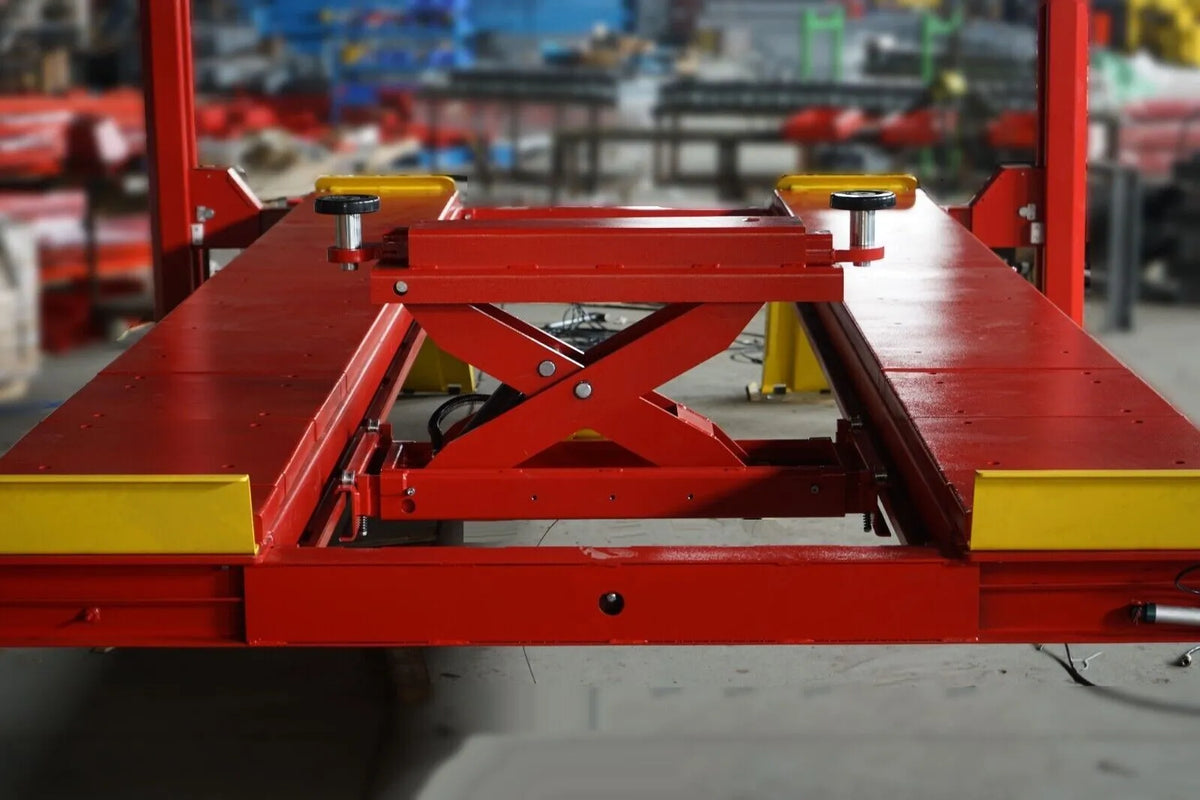

One 6000lbs rolling jack is included.

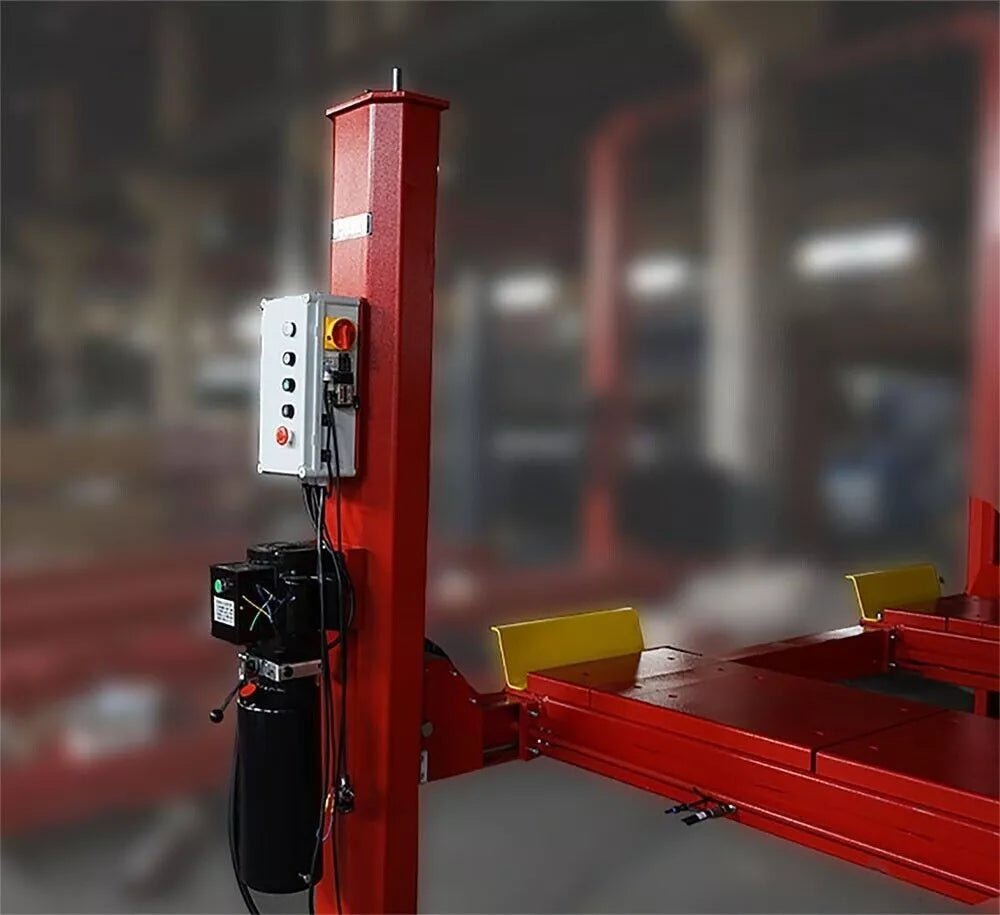

High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional)

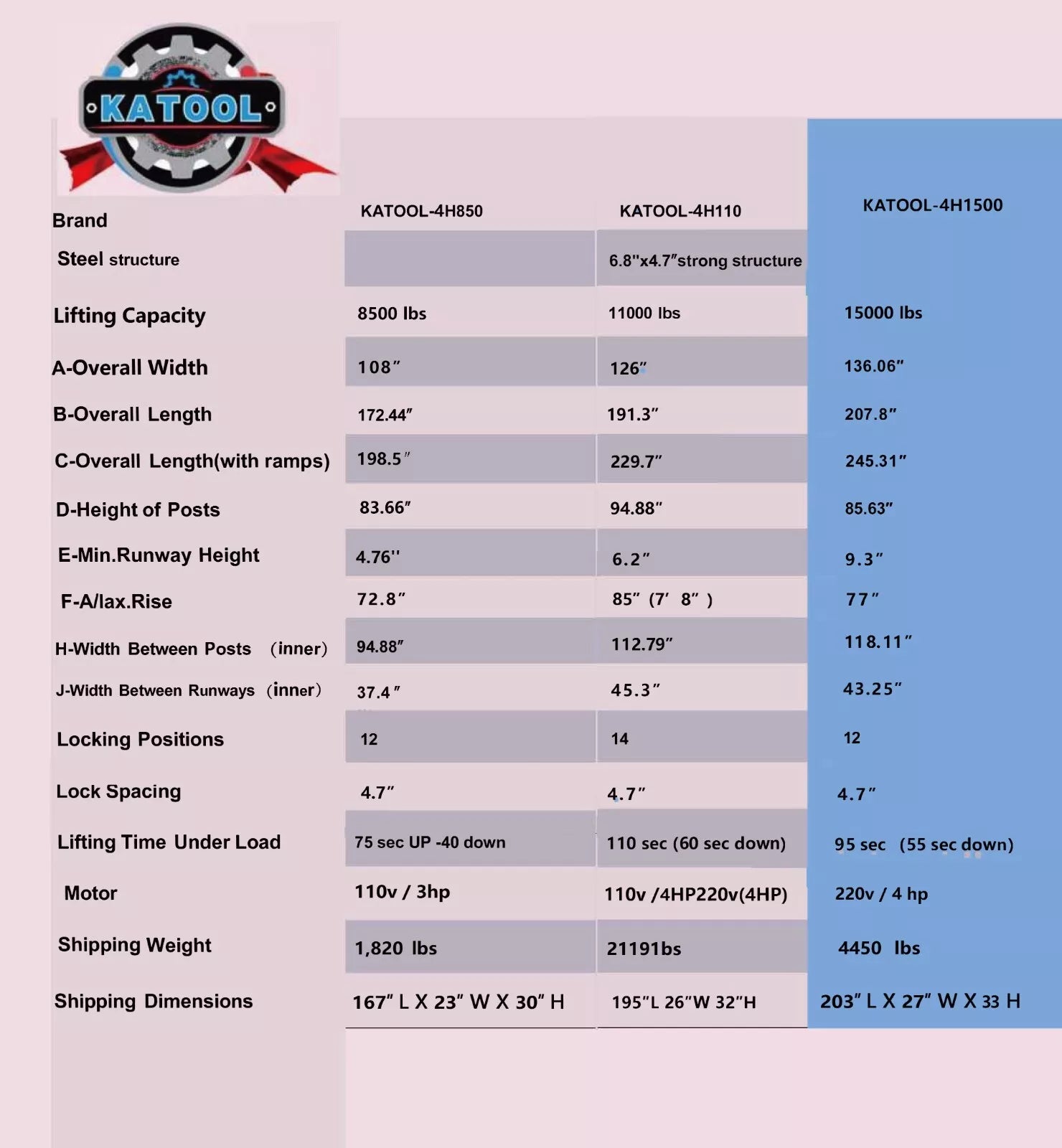

Specification	Value
Model	KT-4H150
Lifting Capacity	15,000 lbs (≈ 6,803 kg)
Max Lifting Height	Approx. 76”
Lifting Time (Up)	Approx. 60 s
Lowering Time (Down)	Approx. 55 s

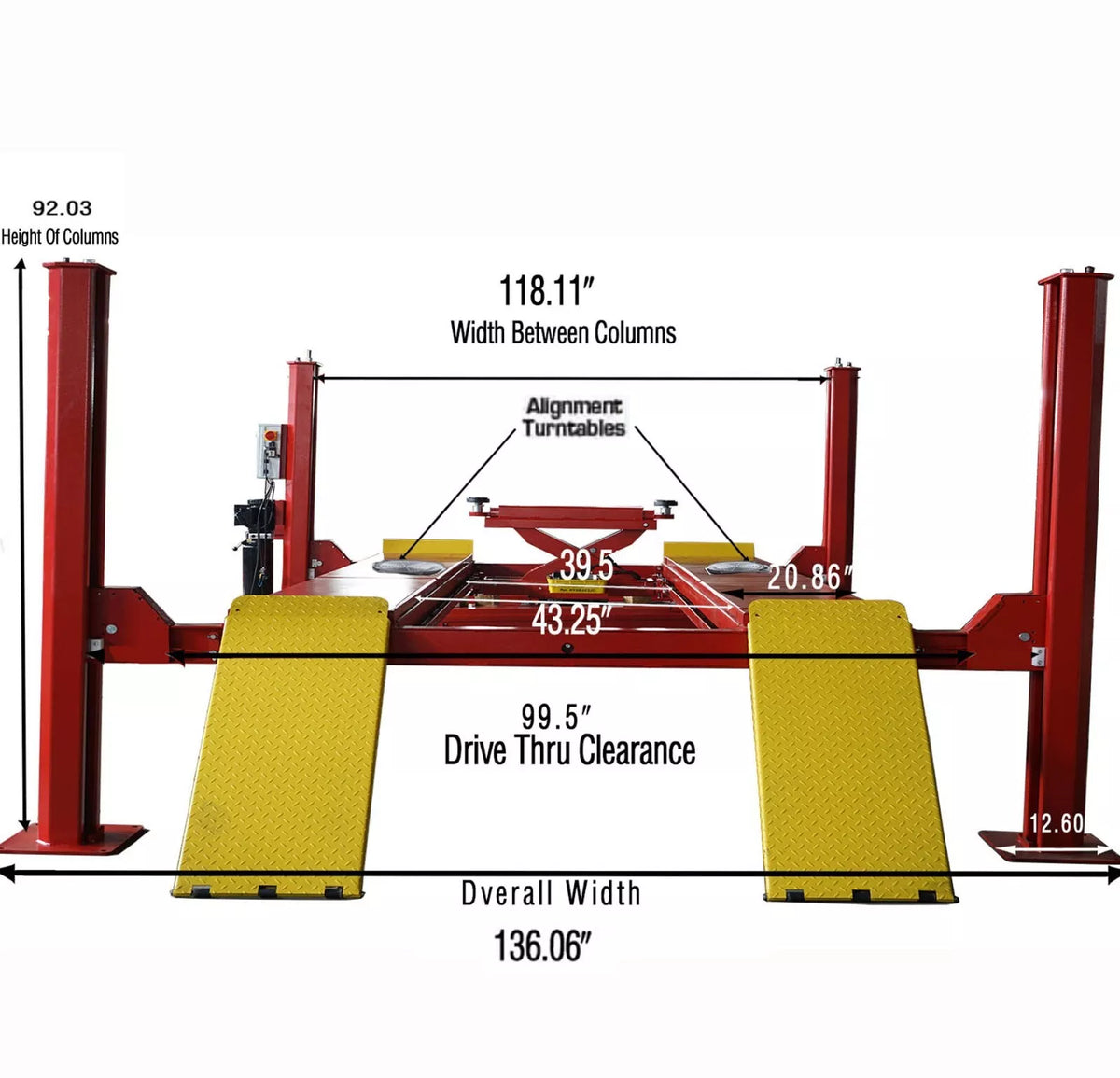

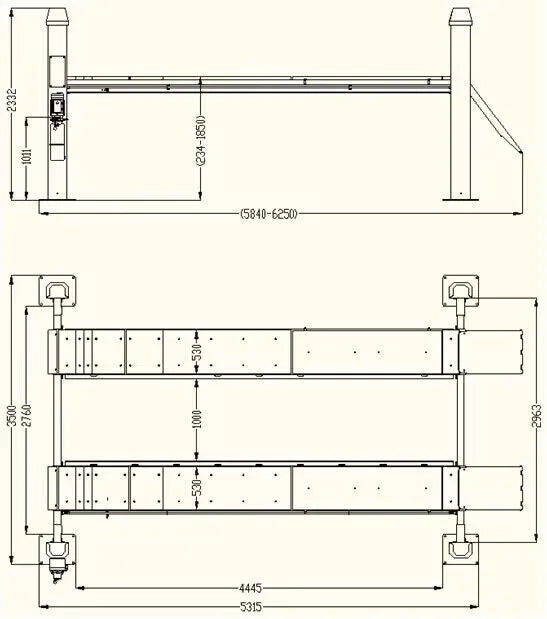

Post Height	Approx. 92″ (2175 mm)
Overall Width	Approx. 136.06″ (3456 mm)
Overall Length (with ramps)	Approx. 245.31″ (6231 mm)
Width Between Columns	Approx. 118.11″ (3000 mm)
Min Runway Height	Approx. 9.3″ (236 mm)
Motor / Power	3 kW, 220 V/60 Hz/1 PH (110 V optional)
Rolling Jack Capacity	6,000 lbs (≈ 2,721 kg)
Net Weight	Approx. 4,850 lbs (2,200 kg)
Safety Certification	CE Certified (115 % dynamic, 150 % static)
