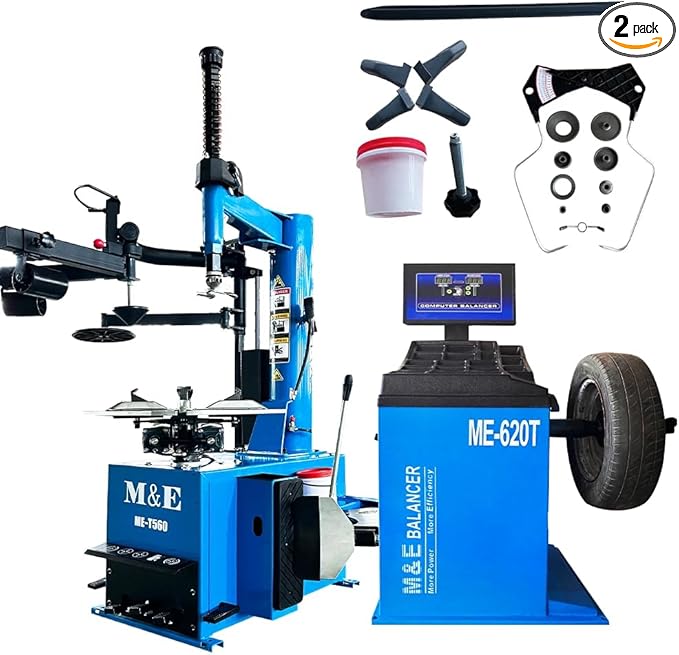

KATOOL ME-T560 Tire Changer Machine with Auxiliary Arm 24" Turn Table 2.0HP Bead Blaster and ME-B620T Wheel Balancer Machine Tire Repair Wheel Changers Combo (ME-T560 & ME-B620T)

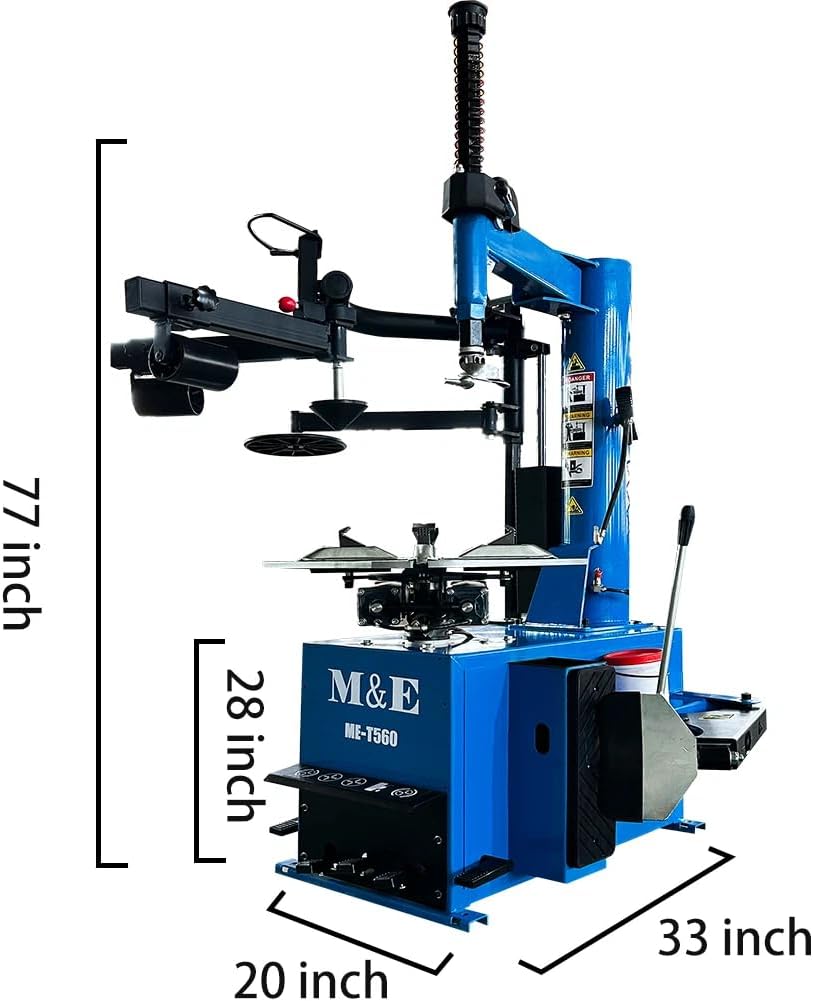

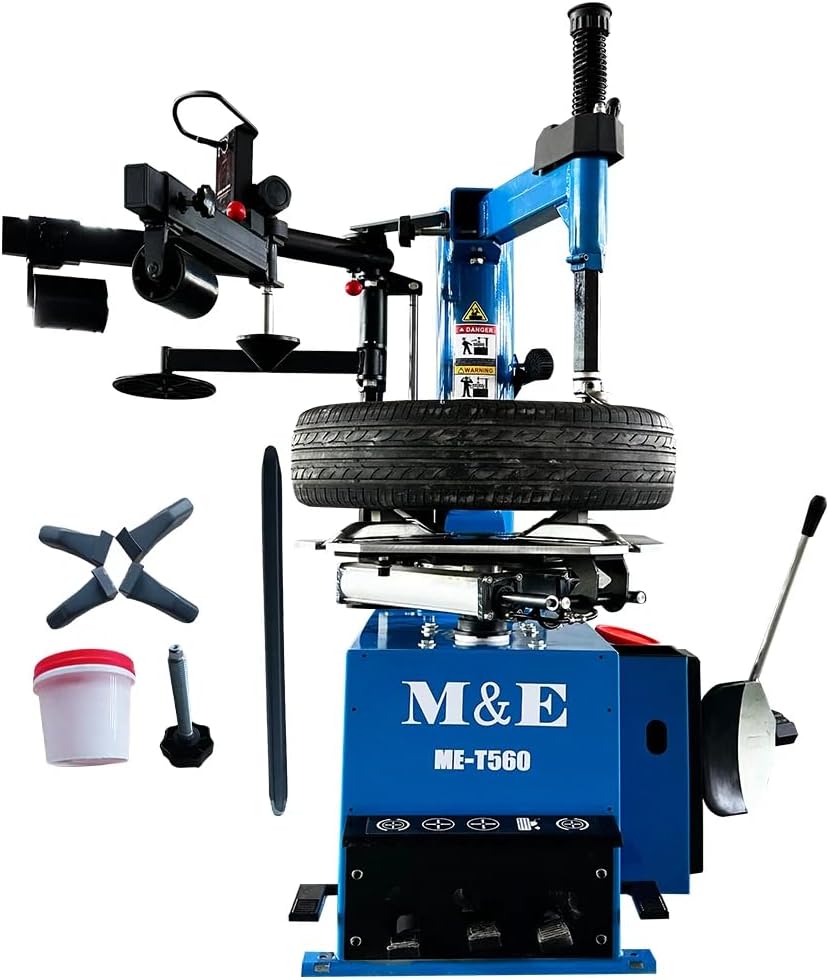

Car Tire Changer ME-T560

Max Wheel Diameter:37"/960mm

Max Wheel Width:12"/300mm

Outside Clamp:10"-20"

Inside Clamp:12"-24"

Power Supply:110V 1PH

Motor Power:2.0HP/1.5KW

Rotation Speed :6.1r/min

Air Pressure:0.8-1.0Mpa(116-145psi)

Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.

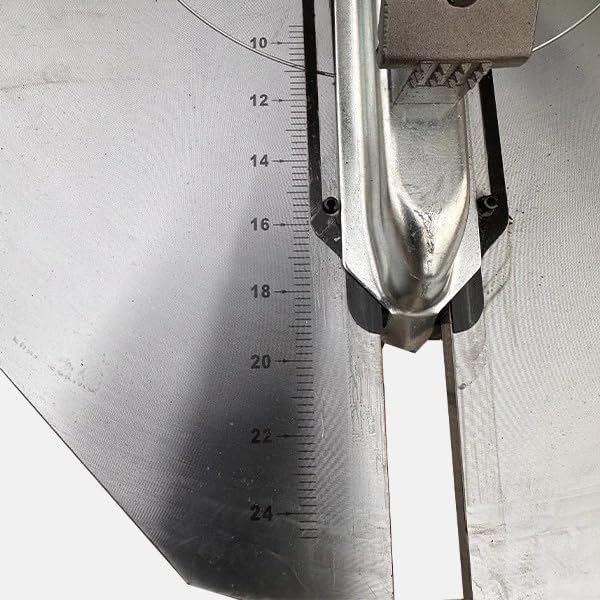

The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle,and take with plastic cover for protect rim.

Inflation gauge with pedal control

With high quality spade cover, effective prevent damage rim.

Pull type pedal control system, convenience for changing and maintenance.

Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.

With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.

For North America region used 110V/1ph/2.0HP motor,more strong power and high efficiency working

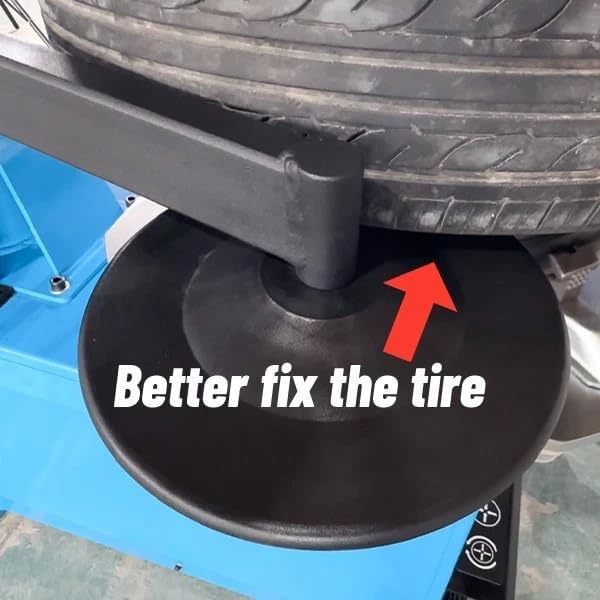

Double side assist arm

Bead blast seater with post tank

φ186mm stainless bead breaker cylinder

Closed body for protect inside parts

Car Wheel Balancer ME-620T

Max wheel weight: 65kg/144 lbs

Motor power: 250w

Voltage: 110V/1PH

Balancing precision: 1g

Rotation speed: 210rpm

Rim diameter: 10〞～24〞& 254～610mm

Rim width: 1.5〞～20〞& 38～508mm

Balancing time: 8-10s

Noist: <70dB(A)

N.W: 105kg

Out dimension: 1200×1400×1760(h)

Working temperature: 0～50℃

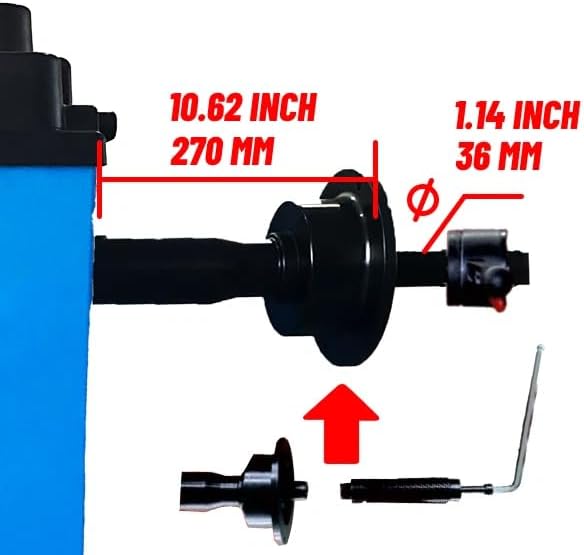

The φ36mm shaft thread is by quenching treatment, high strength.

Top level motor and pure copper winding, fast heat dissipation,low defect rate and longer using life.

The computer board adopt advanced welding technology, moistureproof,dustproof and anti-static electricity, more longer life.

Various balance mode, according different rim for different balance mode,make the balance effect more precision.

Built-in fault diagnosis and self calibration program that double side calibration.

No memory parameters,operation more easy.

Unit selection(Ounce/Gram, MM/Inch).

High quality integration power board, working stable and reliable.
