KATOOL Vertical Tire Changer KT-855 and Wheel Balancer KT-B760 Tires Machine

KATOOL Equipment

KATOOL Vertical Tire Changer KT-855 and Wheel Balancer KT-B760 Tires Machine

Brand: Katool

SKU: 855+760

$2,299.50 $4,599.00 Save $2,299.50

Available

Free Shipping Available this week

Secure Checkout Protected payment

Product Support Help before & after purchase

Secure ordering through Shopify checkout

Order Information

Before and after your purchase

Shipping, warranty and support details can vary by product. Review the information relevant to this model before ordering.

Shipping & Delivery

Larger automotive equipment may ship by freight. Delivery method and timing depend on the product and destination.

Shipping Information →

Warranty

Warranty coverage can vary by model. Review the applicable product warranty and coverage terms before purchase.

Warranty Information →

Product Support

Need help with specifications, compatibility or product information? Contact us with the model you're considering.

Contact Support →

Have a question about this product? Send us the product name or model together with your question.

Contact Us →

Technical parameters

Tire shovel pressure: 2500 KG

Gas source pressure: 0.8-1.0 Mpa

Voltage: 110V/60HZ

Power: 1.5KW

Frequency: 60Hz

Full load current: 4.7A

Noise:<70dB

Scope of Application

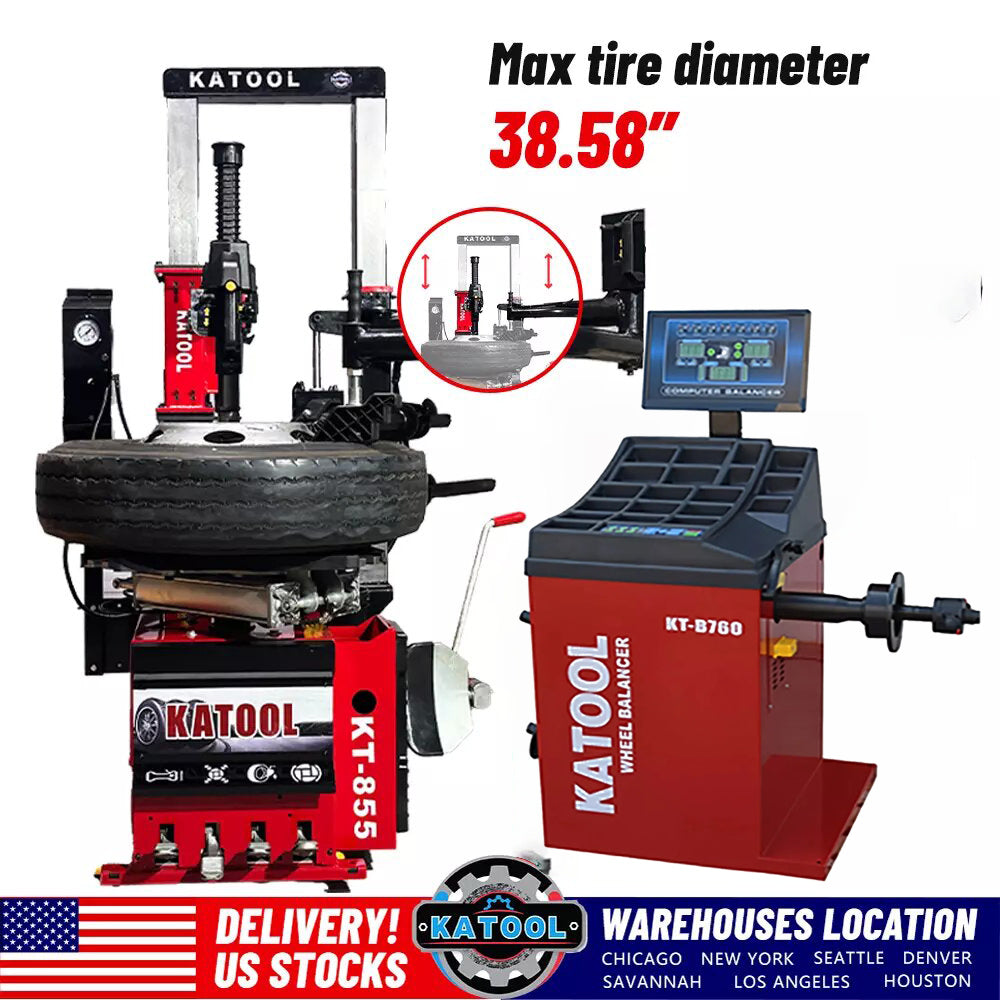

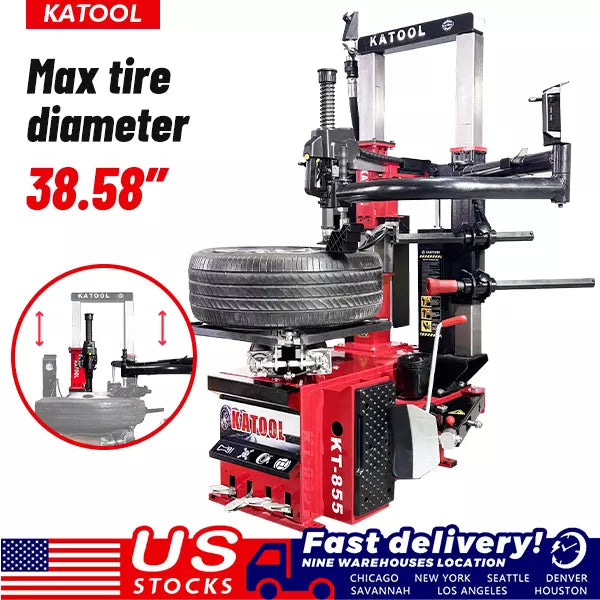

Maximum tire diameter: 1100mm

Maximum tire width: 325mm

Outer clamping steel ring diameter: 12 "-24"

Inner support steel ring diameter: 14 "-28"

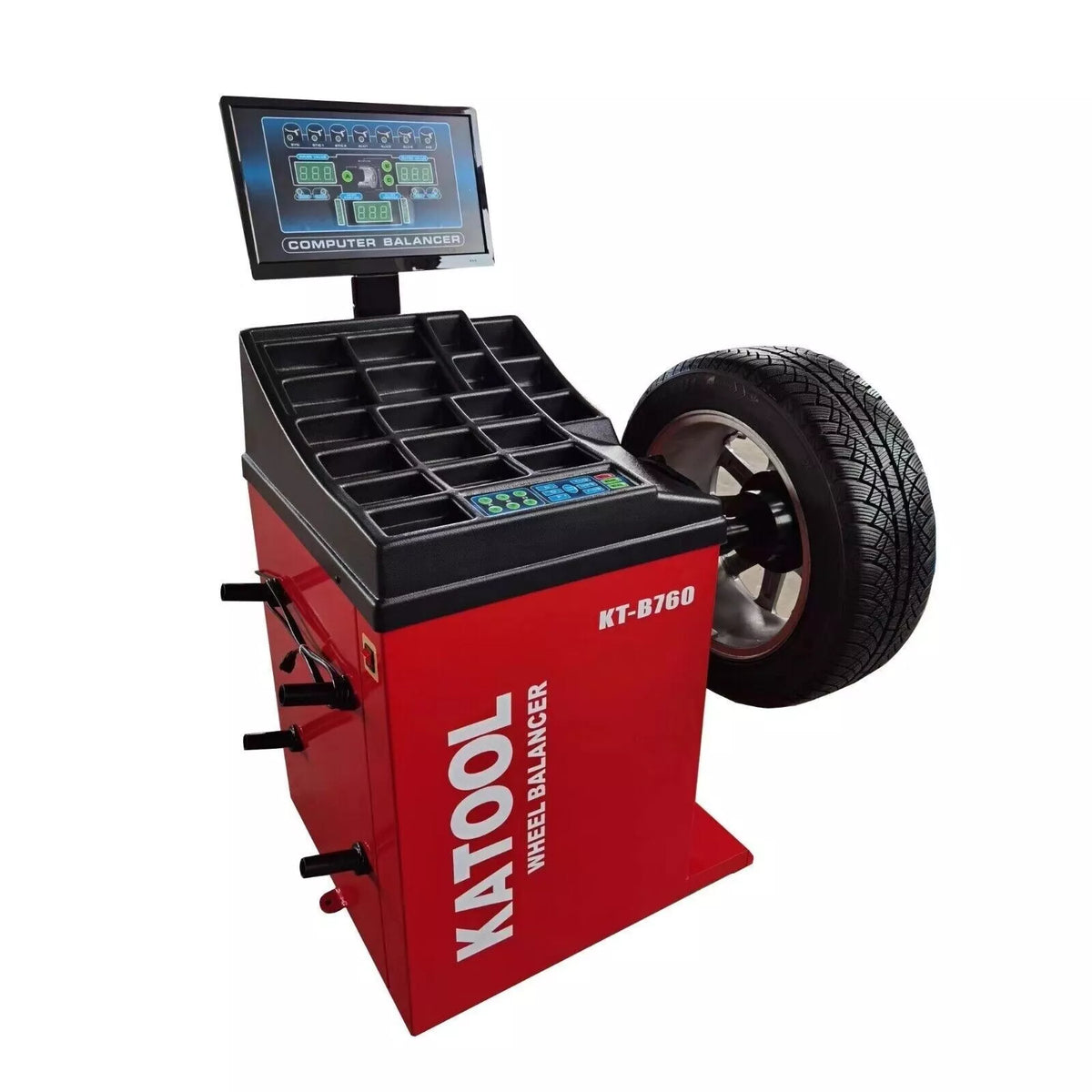

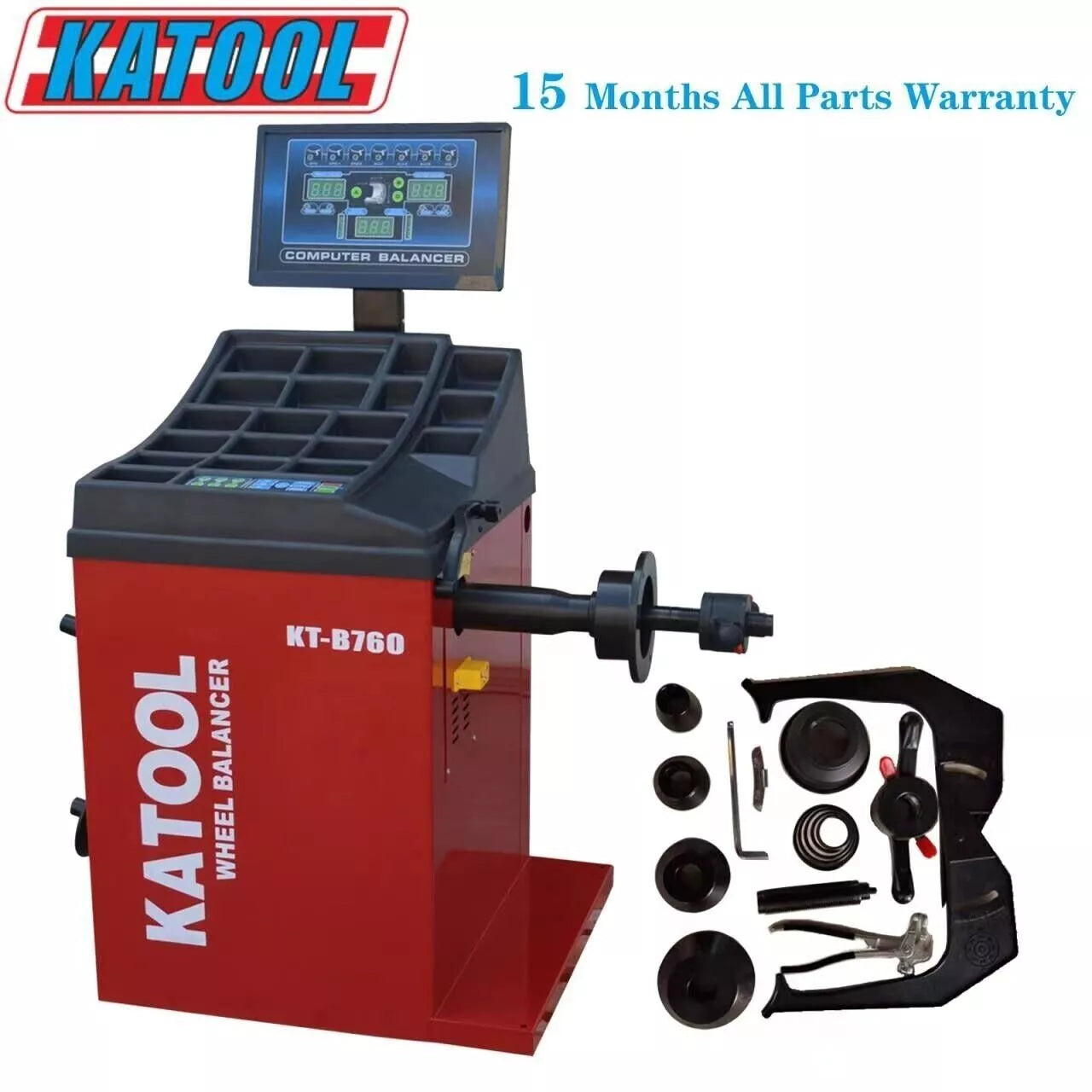

Car Wheel Balancer KT-B760:

Rim Diameter:	<30"
Wheel Width:	3"-12"
Wheel Diameter:	<880mm
Balancing Speed:	180rpm
Power Supply:	120V 1PH
Motor Power:	0.25KW
Rim Center Hole Dia.:	<135mm
Wheel Weight:	<65KG
Balancing Accuracy:	±1g
Measuring Time:	7S

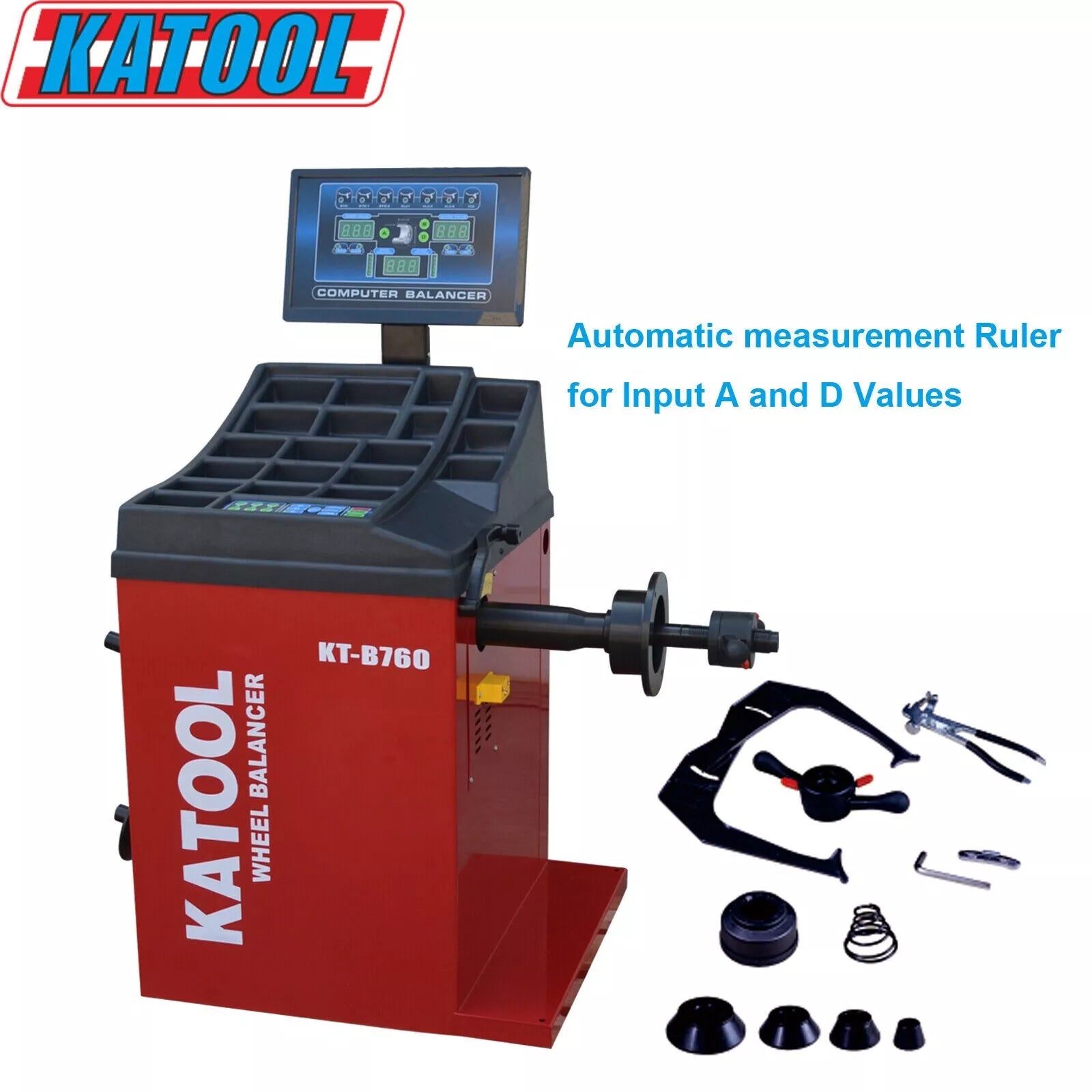

-Automatic measurement ruler for auto input A and D values.

-The body use 3mm thickness steel, high strength, solid welding, few vibration.

-All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision.

-Top level motor and pure copper winding, more power, fast heat dissipation,low defect rate and longer using life.

-The φ36mm shaft thread is by quenching treatment, high strength.

-Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.

-The computer board adopt advanced welding technology, moistureproof, dustproof and anti-static electricity, more longer life.

-Various balance mode, according different rim for different balance mode, make the balance effect more precision.

-Built-in fault diagnosis and self calibration program that double side calibration, No memory parameters,operation more easy.

-Unit selection(Ounce/Gram, MM/Inch).

-High quality integration power board, working stable and reliable.

-Wheel guard for optional.

-Longer shaft for more width wheels

Review all applicable product and installation requirements before installation or use.
