Freight shipping ONLY within the lower 48 states.
Free shipping to commercial address OR carrier terminal. Remote areas maybe charge extra for shipping. Need confirm before delivery.
Shipping carrier could charge extra to residential delivery or limited access.
THE BUYER should be RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
The buyer should be also responsible for any re-delivery charges.
Buyers should inspect delivered the products carefully before signing Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.
|

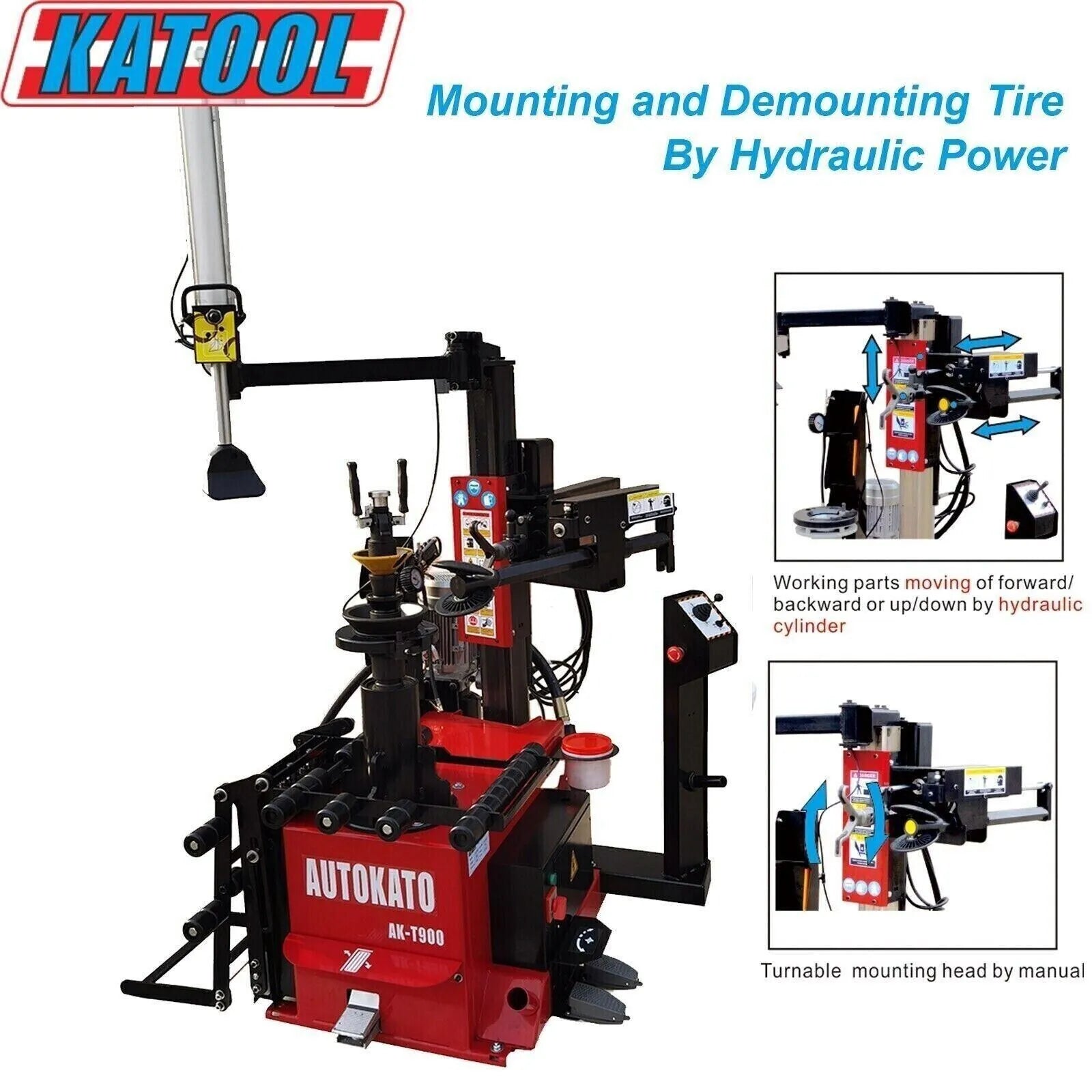

Max wheel diameter:
|
47" / 1200 mm |
|
Max wheel width:
|
16" / 406 mm
|
|
Wheel clamp:
|
12"-30"
|
|
Power supply:
|
110V / 1PH / 60HZ
|
|
Gear Box Motor power :
|
1.5KW / 2HP
|
|
Hydraulic power :
|
1.1KW / 1.5HP
|
|
Rotation speed:
|
6.8r/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
188KG / 414 lbs
|
|
Rim Diameter:
|
<30"
|
|
Wheel Width:
|
3"-12"
|
|
Wheel Diameter:
|
<880mm
|
|
Balancing Speed:
|
180rpm
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
0.25KW
|
|
Rim Center Hole Dia.:
|
<135mm
|
|
Wheel Weight:
|
<65KG
|
|
Balancing Accuracy:
|
±1g
|
|
Measuring Time:
|
7S
|

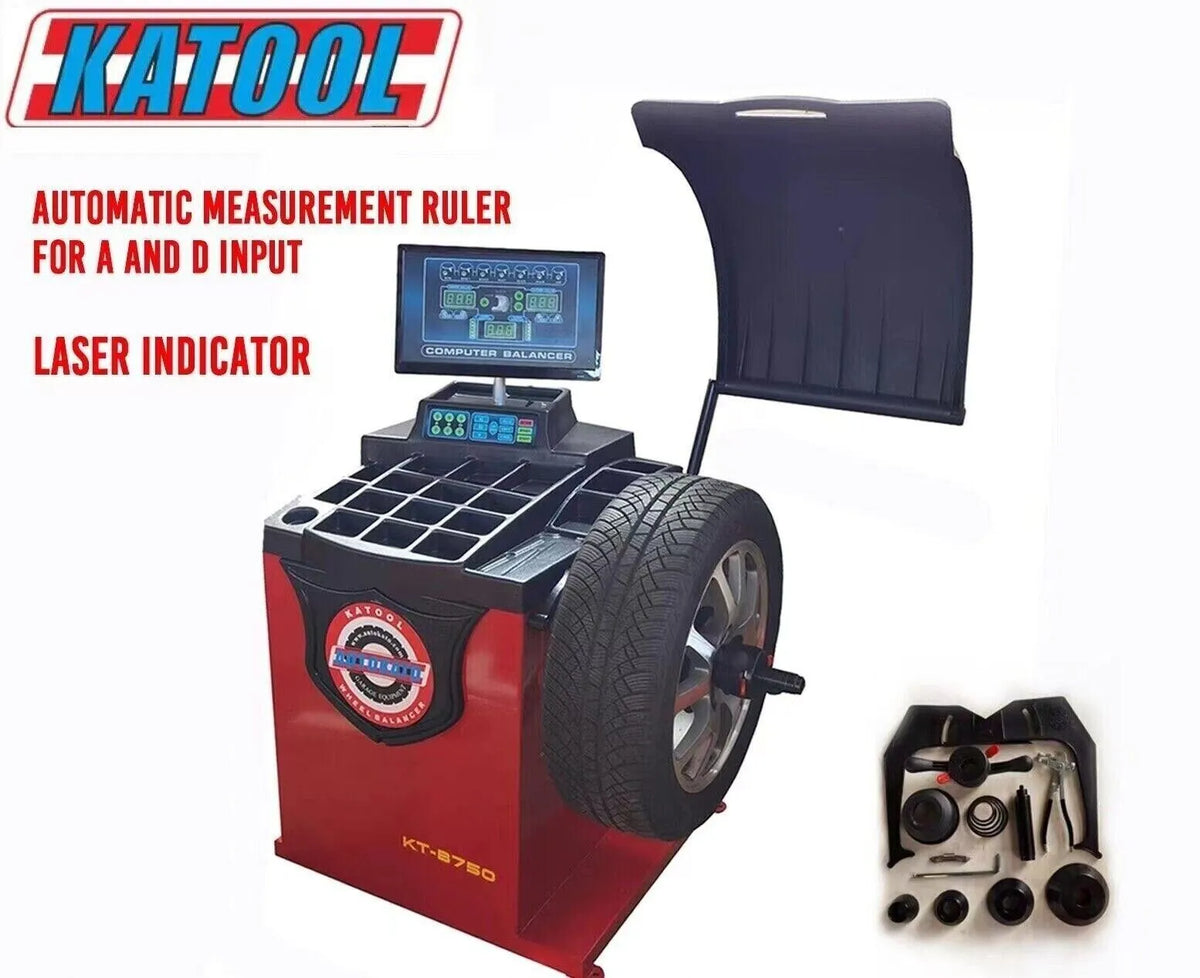

-Automatic measurement ruler for auto input A and D values.
-The body use 3mm thickness steel, high strength, solid welding, few vibration.
-All-in-one pressure sensor support design, bottom board thickness 8mm,side board thickness 8mm, that insure the sensor working stable and high precision.
-Top level motor and pure copper winding, more power, fast heat dissipation,low defect rate and longer using life.
-The φ36mm shaft thread is by quenching treatment, high strength.
-Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.
-The computer board adopt advanced welding technology, moistureproof, dustproof and anti-static electricity, more longer life.
-Various balance mode, according different rim for different balance mode, make the balance effect more precision.
-Built-in fault diagnosis and self calibration program that double side calibration ,No memory parameters,operation more easy.
-Unit selection(Ounce/Gram, MM/Inch).
-High quality integration power board, working stable and reliable.
-Wheel guard for optional.
-Longer shaft for more width wheelsRead feedback from customers who purchased this product and share your experience after your order.
